Getting Started with SpaceFrame™ (SF)

CAVE Systems Fixed SpaceFrame

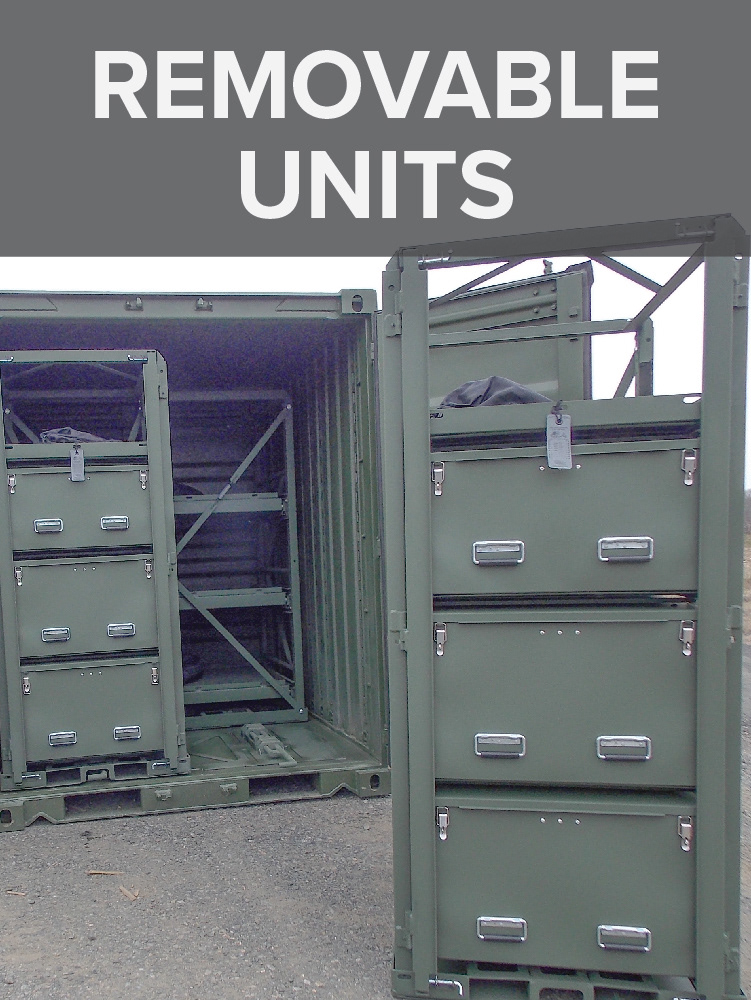

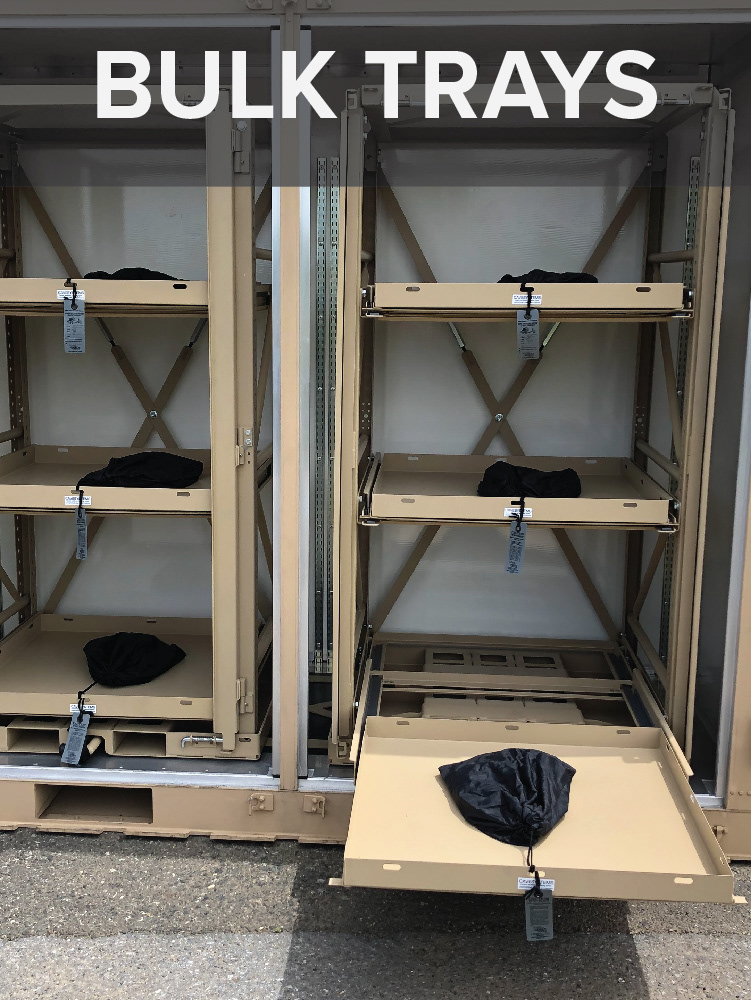

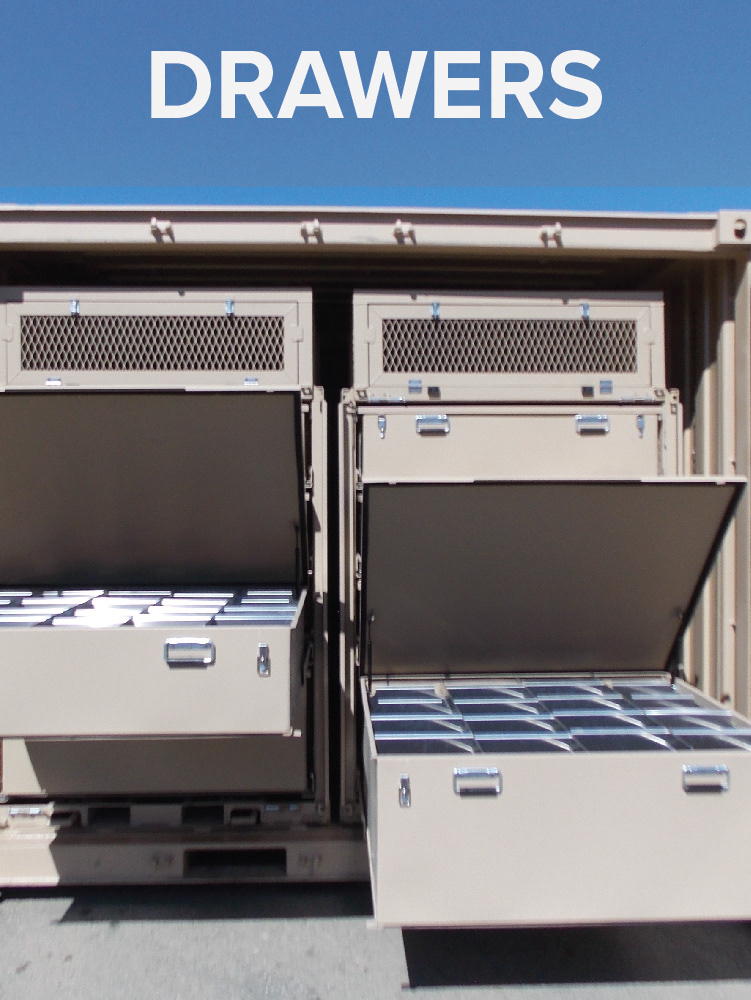

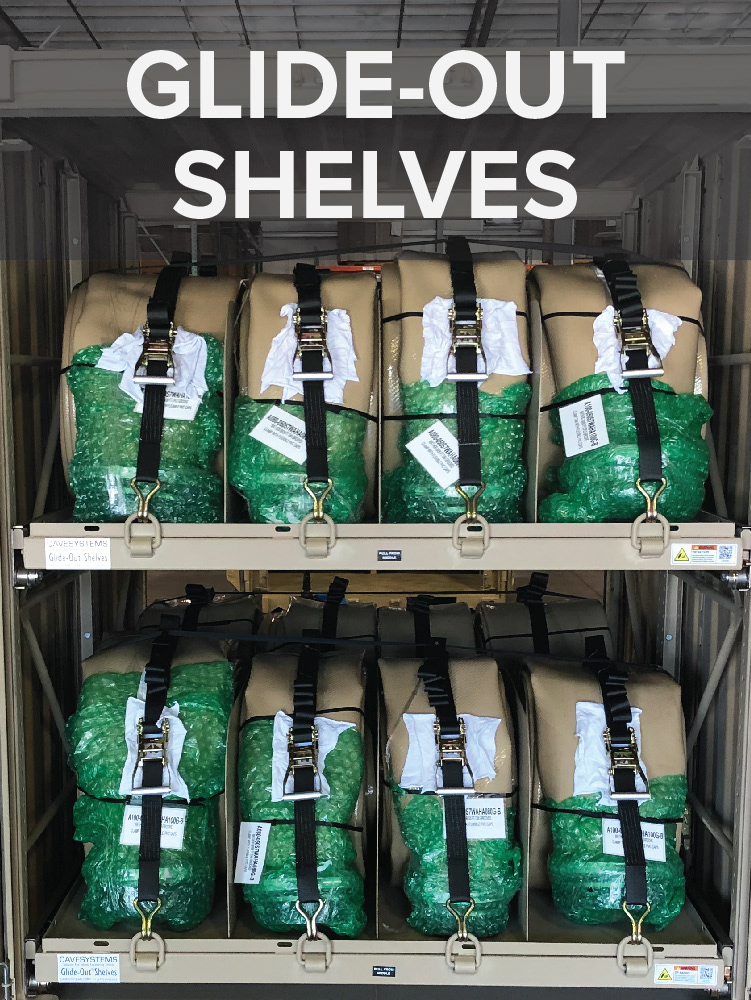

CAVE System’s SpaceFrame can be mounted inside Quadcons, Tricons, Bicons, ISO 20 ft. with side opening doors, Mil-vans and ISU 90s.  The SpaceFrame is available in two configurations: Bolted/Removable and Welded.  All SpaceFrames are equipped with full-height “Lockable Gates”.  These restrain inserts horizontally during deployment and also help reduce theft and pilferage while in transit or at point of use.  SpaceFrames are suitable for mounting the following inserts: StackaBox, Drawers, Bulk Trays, Single Entry Glide-Outs both Standard 70% and 100% extension, the unique Double Entry Glide-Out Shelves and Moving Floors.

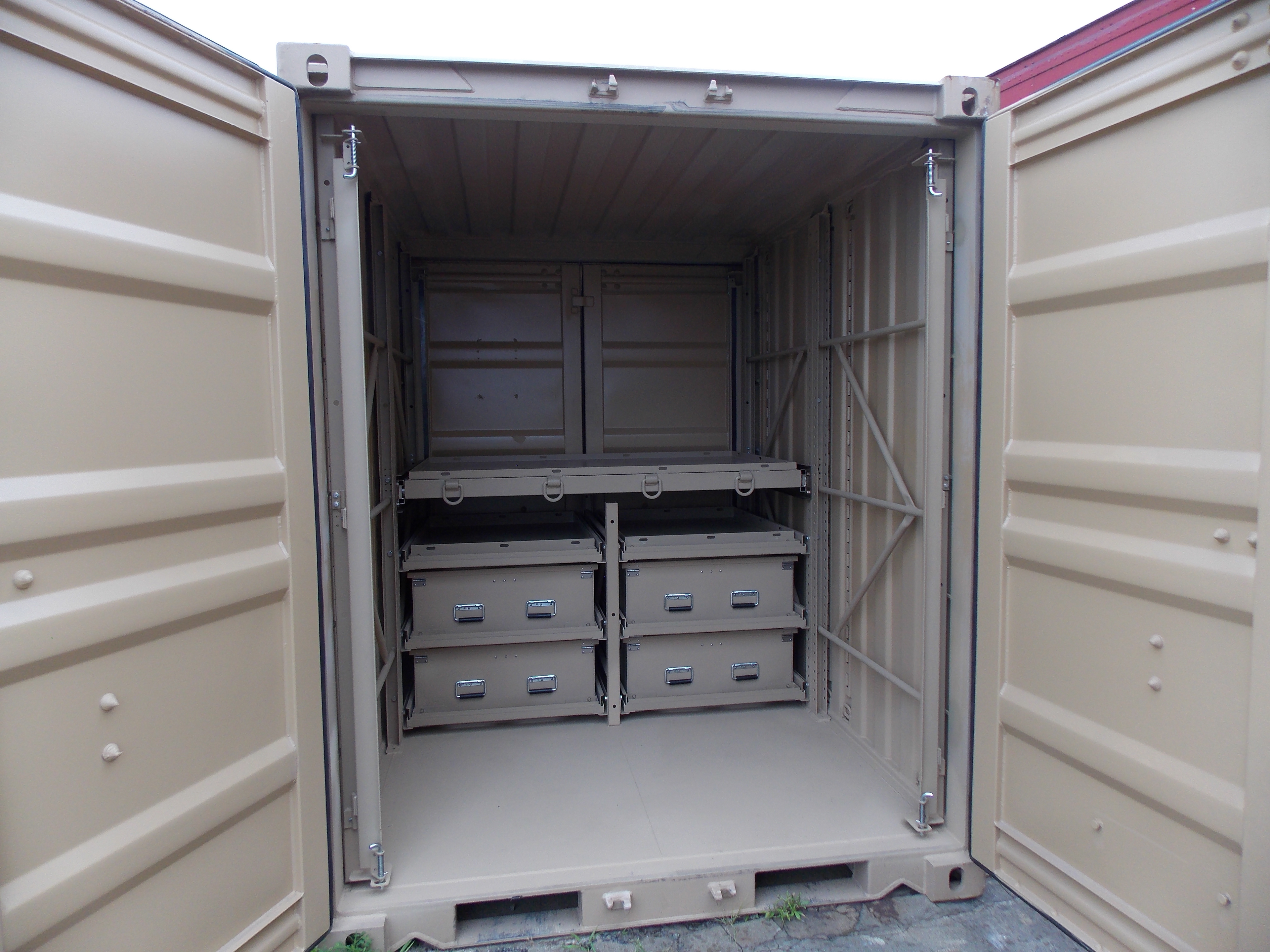

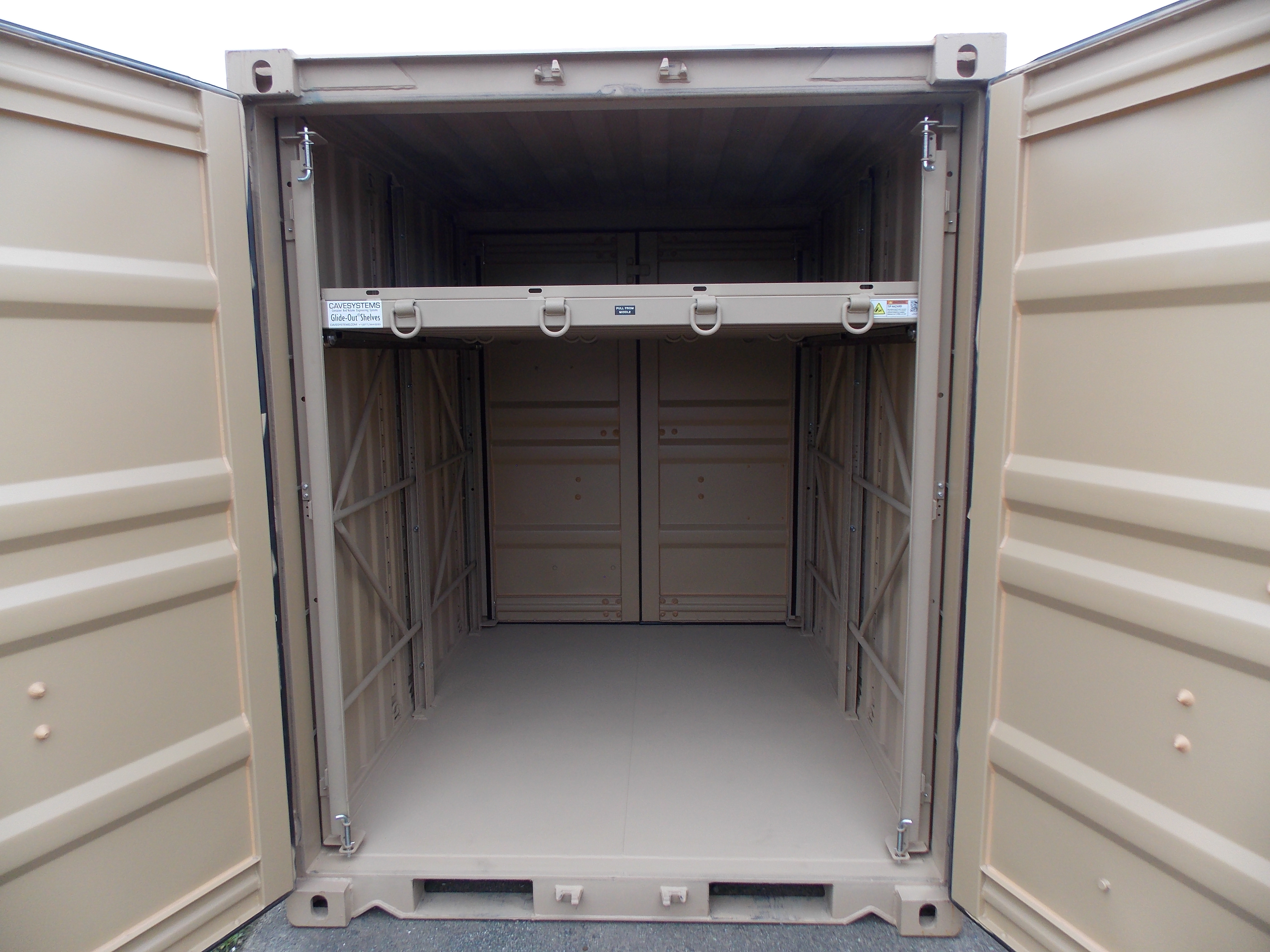

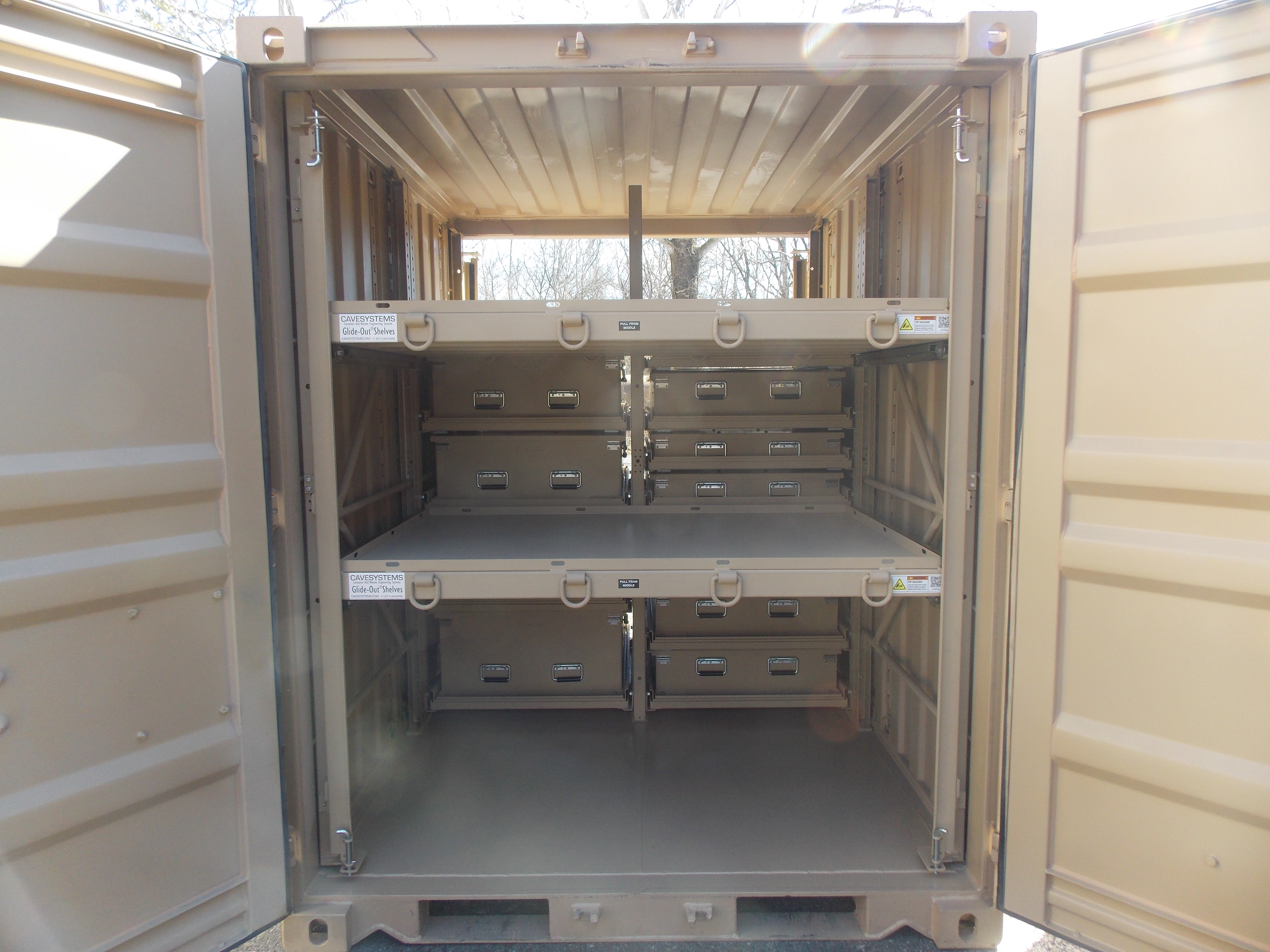

Both sides of the container can be fitted with a combination of inserts enabling small, medium and large items to be stored in the same side of the container.  The SpaceFrame allows inserts to be installed on 1 5/8” (41mm) vertical centers.  The use of the SpaceFrame allows inserts to be easily re-configured and converted after each mission.  SpaceFrames are available for the following containers:

  • Quadcon
  • Tricon
  • Bicon
  • 20 Ft. ISO Fully Open Sides
  • 20 Ft ISO 4 Sets of Doors for Quadcon inserts
  • 20 Ft ISO 3 Sets of Doors for Tricon inserts
  • ISU 90
